CEESCOPE Plugin

The CEESCOPE plugin is a plugin with graphical user interface designed to connect your CEE HydroSystems CEESCOPE or CEE ECHO echo sounder device.
It will transfer position, depth, motion and full water column echogram data to the Hydromagic application.

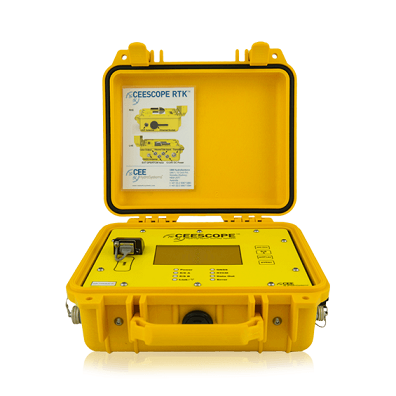

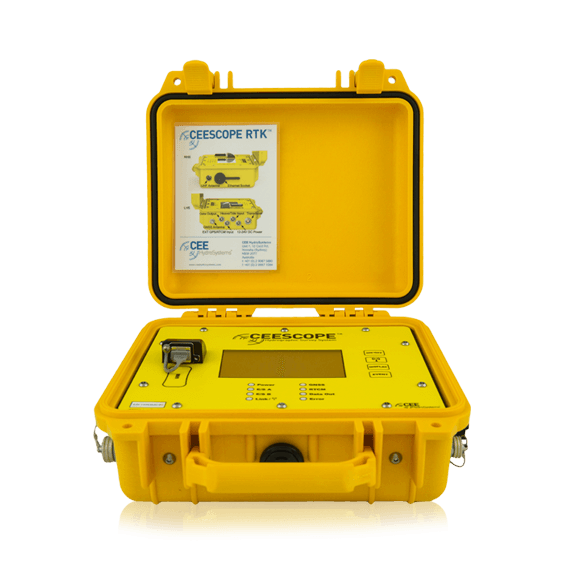

CEE HydroSystems CEESCOPE echo sounder


Configuring the Ethernet adapter

Since the CEESCOPE is connected via an Ethernet cable to your computer directly,
you have to configure your network adapter to be able to communicate to the device directly.

By default, under Windows, network adapters are configured to contain a DHCP server to obtain their configuration.
Since no LAN network will be present, you have to enter a static IP (TCP/IPv4) address.

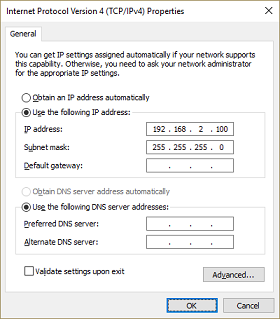

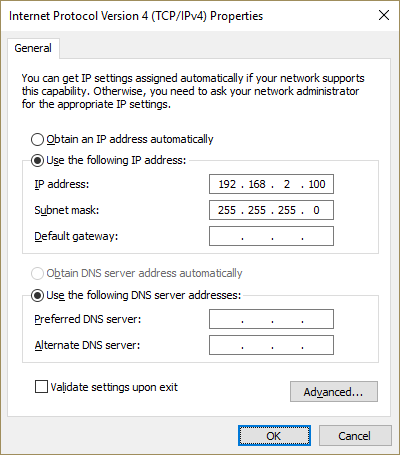

Network adapter configuration for the CEESCOPE


Loading the CEESCOPE plugin

To load this plugin, open the preferences window by selecting "Preferences..." from the "Options" menu.
In the window that appears, select the "Devices" tab. Next click the "Add..." button.

the devices tab in the preferences dialog

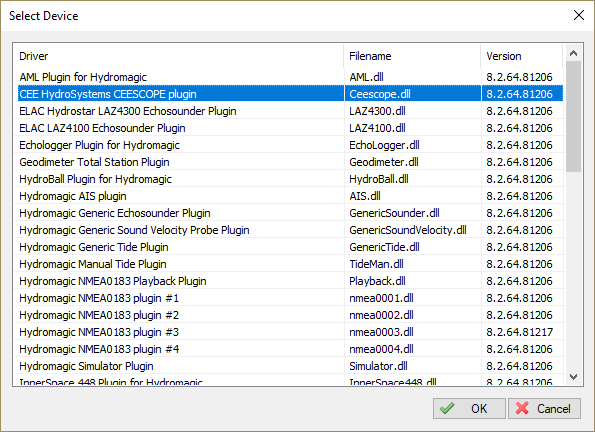

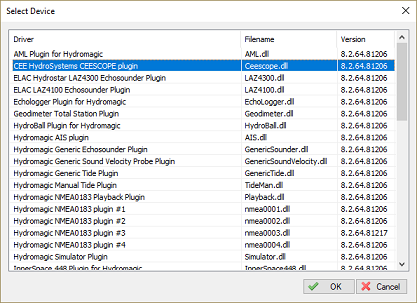

A list of available plugins will be displayed. In this list, select the "CEE HydroSystems CEESCOPE Plugin"
and click "OK" to load and display the plugin's user interface.

select the CEESCOPE plugin


Configuring the CEESCOPE plugin

When the plugin loads, a dialog with some required settings will appear first.
You have to set network (UDP) ports to use for the transfer of navigation and acoustic data packets.

In most cases, you can use the defaults. With factory settings, UDP port 1234 is used to transfer the RTK position data routed through the sounder to the client software. UDP port 1235 is used to transfer the acoustic data packets, containing the depth, range, draft and the echogram data.

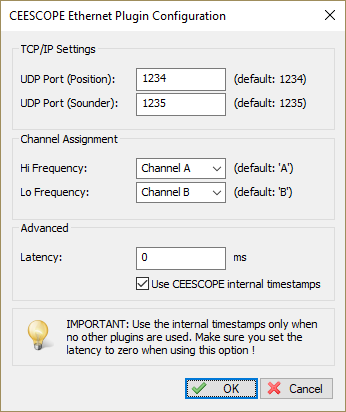

Configuring the CEESCOPE plugin


Use CEESCOPE internal timestamps

When the position data is transferred via the echo sounder, and no other time critical plugins are loaded in Hydromagic, it is recommended to enable this option.
When this option has been enabled, the CEESCOPE will time tag all depth and position data with internal timestamps. When using these timestamps, you do not have to set the latency setting.


Starting the plugin

When the ports have been configured, click the "OK" button to save the settings and start the plugin.

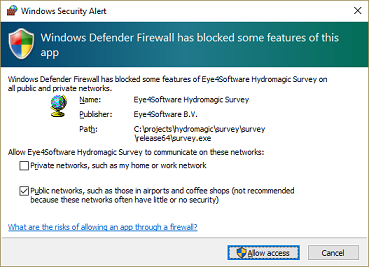

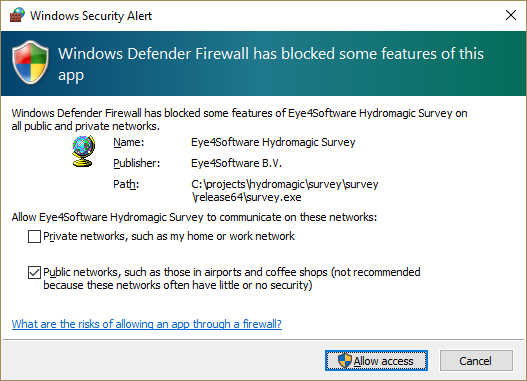

In case the Windows Firewall has been enabled on your computer, you will see the following popup window appear:

Allowing the CEESCOPE data through the firewall

Make sure you click the "Allow Access" button to allow Hydromagic to send and receive data on the configured UDP ports.
When you click the "Cancel" button, access to the sounder will be blocked and you won't receive any data from the sounder !

When the laptop is not connected to the Internet and is only used to communicate with the echo sounder,
you can decide to shut down the Windows Firewall entirely. It is also recommended to try this in case of connection issues.

After allowing the connection, there should be a green icon in front of the plugin, indicating data is coming in successfully.


Testing the sounder

When data is received, you should be able to see the depth and position information in the data window.
To have a look at the echogram data, select "Echogram(Hi)" or "Echogram(Lo") from the View menu.
