HyPack raw data files

Raw data files in HyPack, are used to store all incoming data with high precision timestamps. Hydromagic allows users to import projects previously recorded in HyPack, for instance to further process the data in Hydromagic Survey, or to use the data in Hydromagic Dredging (after processing the raw data and generating a matrix file from the soundings).

  FTP NEW 2
  VER 11.1.6.15
  INF "" "" "" "" 0.983268 0.000000 0.000000
  ELL WGS-84 6378137.000 298.257223563
  PRO TME -63.000000 0.999600 0.000000 0.000000 0.000000 500000.0000 0.0000
  DTM 0.00 0.00 0.00 0.00000 0.00000 0.00000 0.00000
  GEO ??? 0.000
  HVU 1.0000000000 1.0000000000
  TND 13:46:16 12/01/2010 300
  DEV 0 276 "Simulation" 1 C:\HYPACK 2011\devices\testdev.dll 9.0.1.1
  OFF 0 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000
  LIN 2
  PTS 454484.00 4945231.00
  PTS 455477.00 4942150.00
  LBP 454484.00 4945231.00
  LNN 1
  LTP 0.00 0.00
  LTP 500.00 60.00
  LTP 2500.00 60.00
  LTP 3000.00 0.00
  EOL
  EOH
  TID 0 49573.654 0.776
  EC1 0 49573.971 62.800
  TID 0 49573.971 0.835
  POS 0 49573.971 454468.123 4945274.185
  TID 0 49573.971 0.835
  POS 0 49574.590 454469.702 4945271.288
  EC1 0 49574.590 62.900
  TID 0 49574.590 0.886
  EC1 0 49574.901 63.100
  TID 0 49574.901 0.927
  POS 0 49574.901 454472.047 4945266.988
  TID 0 49574.901 0.927
  POS 0 49575.525 454474.392 4945262.687
  EC1 0 49575.525 63.200
  TID 0 49575.525 0.960
  EC1 0 49575.839 63.400
  TID 0 49575.839 0.983
  POS 0 49575.839 454476.784 4945258.299
  TID 0 49575.839 0.983
  POS 0 49576.461 454479.129 4945253.999
  FIX 99 49576.534 1 454479.129 4945253.999

Example HyPack raw data file


Starting the raw data import wizard

All file formats which Hydromagic is able to convert to raw data files, can be imported through the raw data import wizard. To start the wizard, right-click the 'Raw Data' folder in the "Project Explorer" and select the 'Import Data Wizard...' option.

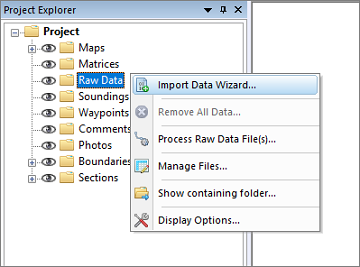

Starting the raw data import wizard
Right click the "Raw Data" folder and select "Import Data Wizard...".


Select file format

The first page of the wizard allows you to set the format of the file(s) we wish to import. Since this tutorial is about importing HyPack raw data, we select the 'HyPack raw data files (*.*)' option from the drop-down list.

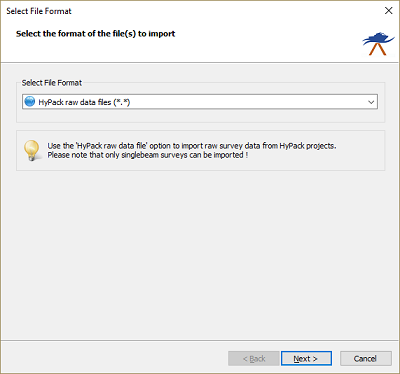

Select the HyPack raw data files option from the drop-down list
Select the "HyPack raw data files" option from the drop-down list.


Select file(s) to import

In the second page of the wizard you can select which files to import. Click the 'Browse...' button to select the folder on your computer where the files are stored. After changing the folder the file list is reloaded, and you can use the check boxes to select one or more file(s) to import.

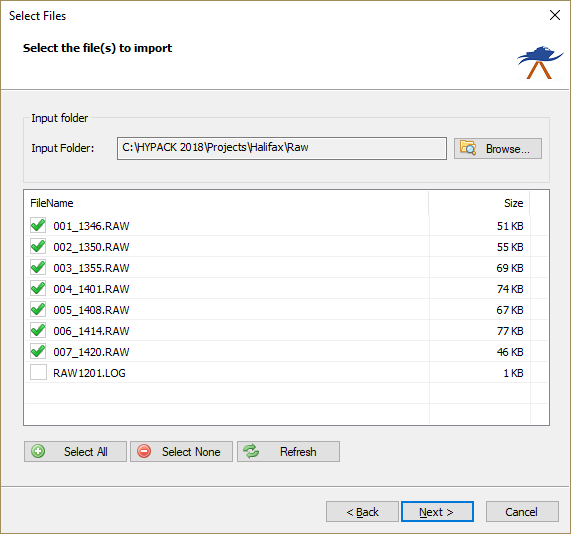

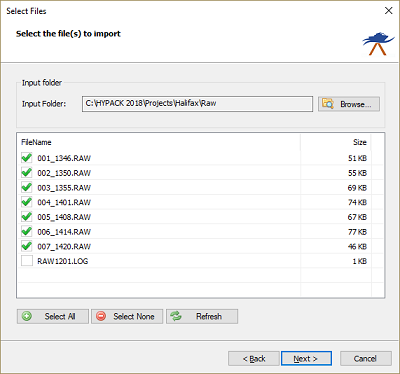

Select which files from the folder you wish to import as raw data
Select which files from the folder you wish to import as raw data.


Starting the import

When the format, the files and the additional options has been set, you can start the import process by clicking the 'Finish' button on the last page of the wizard.

The file currently processed is displayed in the status bar at the bottom of the screen, and the wizard shows a message box stating 'File(s) successfully imported as raw data file(s)' as soon as the process has completed. Click 'OK' to close the dialog and the imported files will be centered in the map view (only when they contain position data). After importing raw data files, you can download a background map of the covered survey area using the built-in map downloading tool.

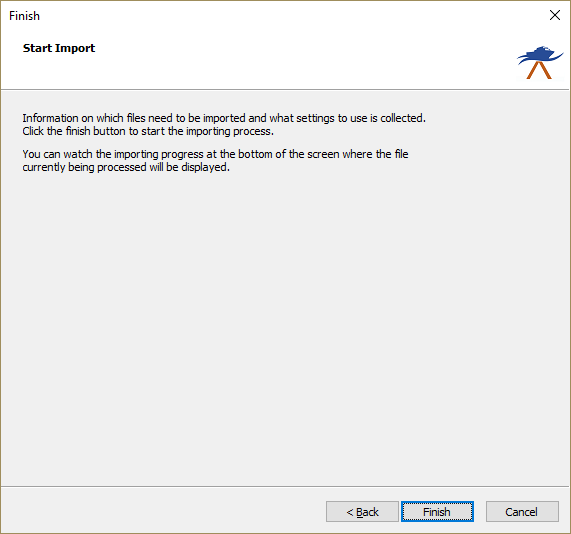

Click the Finish button to start the import process
Click the "Finish" button to start the import process.


Checking the imported raw data file(s)

When the import has completed, you can right-click the generated raw data files, and select "Analyze Data..." to inspect the imported values and timestamps. When the import did not complete successfully, you can refer to the "Processing" tab of the activity view for more details on the error shown.
