Shoreline data
The shoreline data option can be used to enter depth data for places you cannot reach using your vessel, for instance, because the water is too shallow. It can also be used to specify a line of equal depth, for instance, where the water reaches the shore.
For instance, in the example below, you would set the depth for all points on the line to zero:

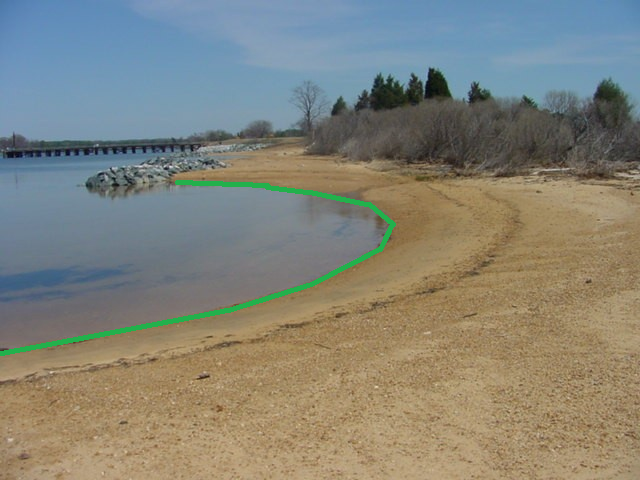

Real world scenario where shoreline data could be used in Hydromagic.
Drawing a shoreline
In order To draw a shoreline by hand, for instance, when it is possible to use an accurate map, select the "Draw Boundary" option from the "Cursor" menu. Now you can click the points that make the line segments for the shoreline. When finished, just click the right mouse button to store the line.
When you finish drawing the shoreline, the 'Edit Boundary' dialog box will appear. A shoreline is basically a special type of boundary in Hydromagic. To store the line or area just drawn as a shoreline, select one or multiple options:

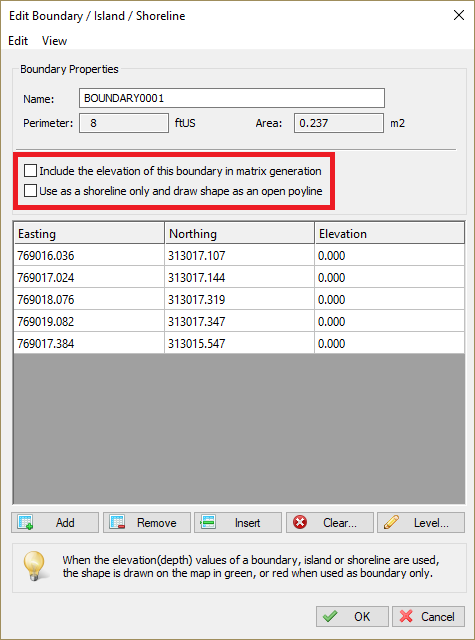

Shoreline options as checkboxes in Hydromagic.
"Include the elevation of this boundary in matrix generation"
When this option has been checked, the shape drawn will be closed and is used as a regular boundary with one exception: You can set the Z-values for this area so the depths or elevations along the boundary line are taken into account when generating matrices or performing volume calculations.
Use this option when you want to define an island or the shore of a pond or lake and set the depths or elevations at the shore(s).
When an area contains Z-values (shoreline data) it will be drawn in GREEN. When neither of the shoreline options are checked, the area is used as a boundary/clipping area only and will be drawn in RED.
"Use as a shoreline only and draw shape as an open polyline"
When selecting this option, all points on the line will have Z-values which will be included in matrix generation. Since the line will be treated as an open polyline, it cannot be used as boundary or island shape.
Use this option to include a single shore on one side of an area with additional (manually measured) depth or elevation points.
When an area contains Z-values (shoreline data) it will be drawn in GREEN. When neither of the shoreline options are checked, the area is used as a boundary/clipping area only and will be drawn in RED.

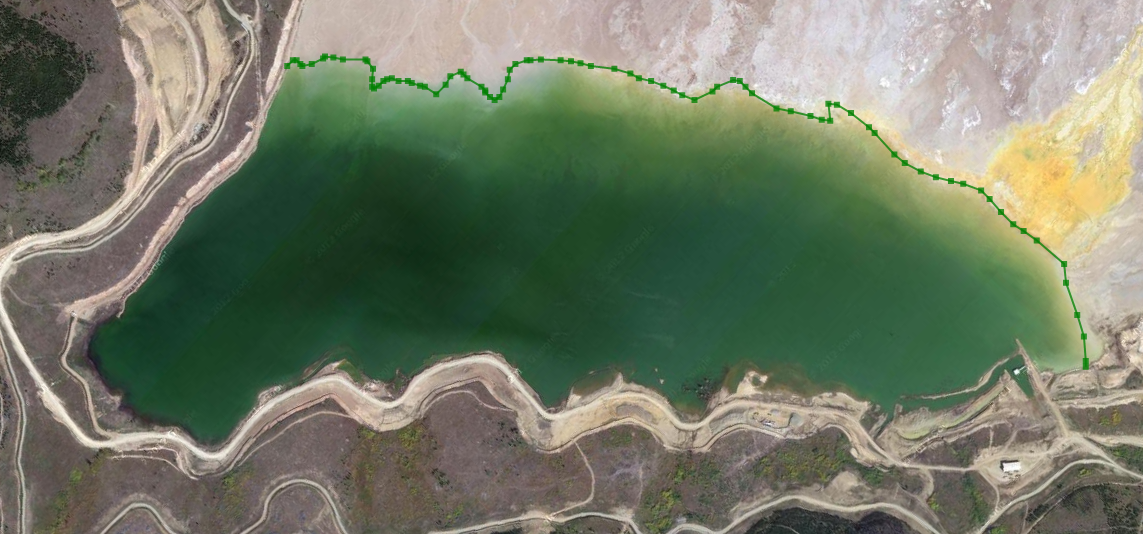

Example shoreline drawn on top of a background map.
Entering manually
When you want to enter the shoreline manually, for instance, when you have measured the shoreline coordinates from the shore using an RTK rover, right click on "Boundaries" in the "Project View" and select "Add Shoreline". The following dialog should now appear, allowing you to enter all measured coordinates in the spreadsheet. Click the "Add..." button to add new records.

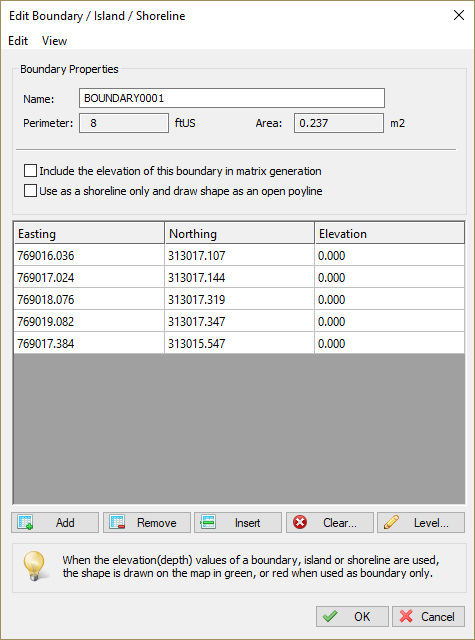

You can edit shoreline elevation data manually using the boundary editor.
Setting depth values
When the shoreline connects points with the same depth value, for instance zero, you can set all Z values at once by clicking the "Level..." button and entering the value.
Please note that in cases where you are going to use the shoreline in calculations with elevations, you have to enter the elevation instead of depths here.

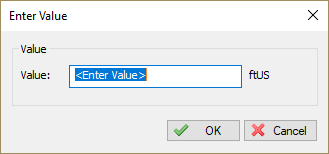

Set the same level for all points.
Modifying shoreline data
To modify the positions in shoreline data, use the mouse to drag and drop the positions on the map. When you want to modify positions manually, or you want to alter the depth values, you have to use the "Edit Boundary" dialog. To open this dialog, right click on the boundary you want to modify in the "Project View" and select the "Edit Boundary..." option.

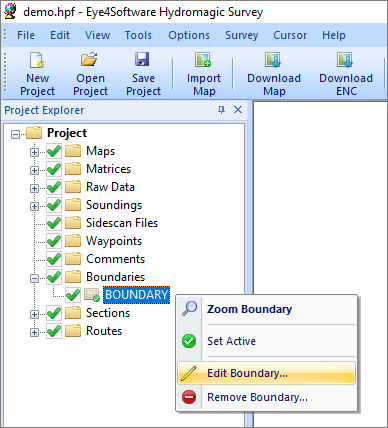

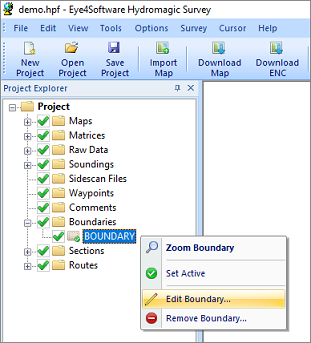

Launch the boundary editor from the "Project Manager".
Applying shoreline data
Shoreline data can be used when generating matrices and calculating volumes (using matrices). When generating a matrix, you can specify which shorelines you want to include by clicking the "Select..." button. In the dialog that appears, check the boundaries (shorelines) you want to include and click "OK":

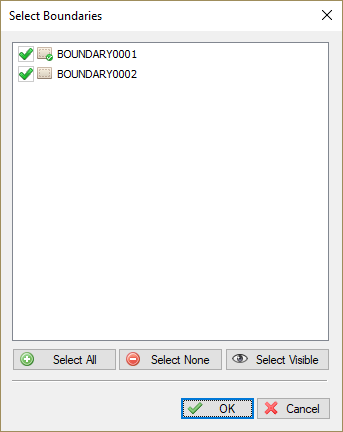

Select shoreline data to include.
Video Tutorial
The following YouTube video tutorial shows how to use shoreline data when generating matrices in Hydromagic. Click below to play the video. When you like the video, please click the like button and subscribe so you will receive an update when new video tutorials on Hydromagic are uploaded.
The difference between using shorelines or only sounding data.
